DSD-EF-FB
DSD-EF-FB : Deep Single Tube Drills with External 4-Start Thread Connection for High Feed (25-89 dia.)

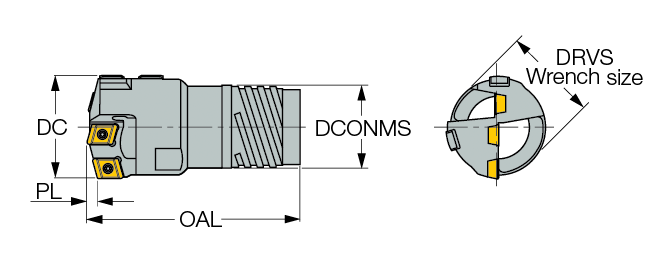

| Designation | DCN | DCX | OAL | PL | DCONMS | DRVS  | Ts | |
|---|---|---|---|---|---|---|---|---|
| DSD-EF 25.00-26.40-FB | 25.00 | 26.40 | 73.00 | 3.00 | 19.50 | 22.0 | TS-I6 | |
| DSD-EF 26.41-28.70-FB | 26.41 | 28.70 | 73.00 | 3.00 | 21.00 | 23.0 | TS-I7 | |
| DSD-EF 28.71-31.00-FB | 28.71 | 31.00 | 78.00 | 3.00 | 23.50 | 24.0 | TS-I8 | |
| DSD-EF 31.01-33.30-FB | 31.01 | 33.30 | 78.00 | 3.00 | 25.50 | 27.0 | TS-I9 | |
| DSD-EF 33.31-36.20-FB | 33.31 | 36.20 | 83.00 | 3.00 | 28.00 | 29.0 | TS-I10 | |
| DSD-EF 36.21-39.60-FB | 36.21 | 39.60 | 93.00 | 3.00 | 30.00 | 32.0 | TS-I11 | |
| DSD-EF 39.61-43.00-FB | 39.61 | 43.00 | 99.00 | 4.00 | 33.00 | 35.0 | TS-I12 | |
| DSD-EF 43.01-47.00-FB | 43.01 | 47.00 | 104.00 | 4.00 | 36.00 | 38.0 | TS-I13 | |
| DSD-EF 47.01-51.70-FB | 47.01 | 51.70 | 104.00 | 4.00 | 39.00 | 41.0 | TS-I14 | |
| DSD-EF 51.71-56.20-FB | 51.71 | 56.20 | 114.00 | 4.00 | 43.00 | 46.0 | TS-I15 | |
| DSD-EF 56.21-60.60-FB | 56.21 | 60.60 | 120.00 | 5.00 | 47.00 | 50.0 | TS-I16 | |
| DSD-EF 60.61-65.00-FB | 60.61 | 65.00 | 120.00 | 5.00 | 51.00 | 55.0 | TS-I17 | |
| DSD-EF 65.01-66.99-FB | 65.01 | 66.99 | 149.00 | 8.00 | 52.00 | 63.0 | TS-I18 | |
| DSD-EF 67.00-72.99-FB | 67.00 | 72.99 | 149.00 | 8.00 | 58.00 | 69.0 | TS-I19 | |
| DSD-EF 73.00-79.99-FB | 73.00 | 79.99 | 150.00 | 9.00 | 63.00 | 76.0 | TS-I20 | |
| DSD-EF 80.00-86.99-FB | 80.00 | 86.99 | 173.00 | 9.00 | 70.00 | 83.0 | TS-I21 | |
| DSD-EF 87.00-89.00-FB | 87.00 | 89.00 | 173.00 | 9.00 | 77.00 | 86.0 | TS-I22 |
