DSD-IC

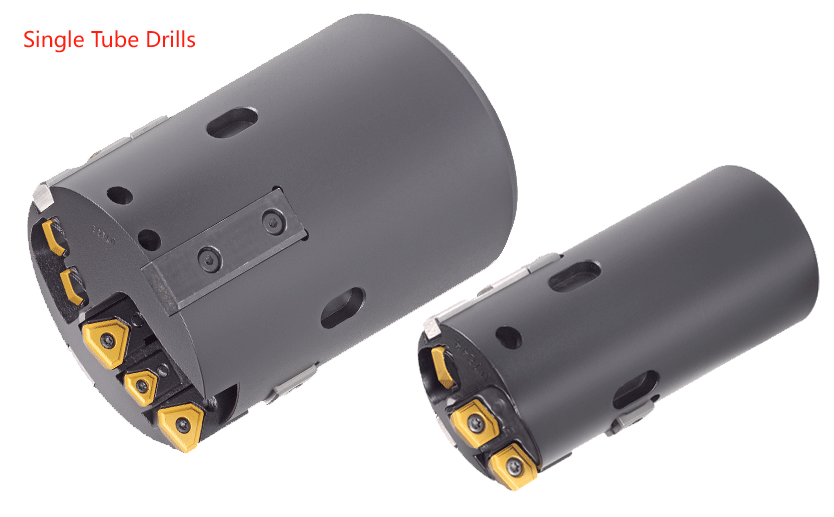

DSD-IC : Deep Single Tube Drills with Internal Single-Start Thread Connection and Cartridges (38-294 dia.)

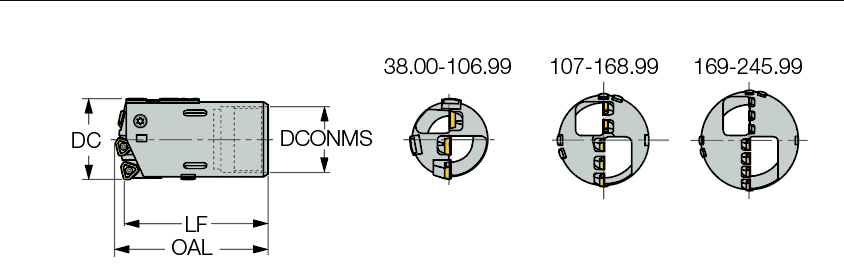

| Designation | DCN | DCX | OAL | LF | DCONMS | Ts  | |
|---|---|---|---|---|---|---|---|
| DSD-IC 38.00-39.99 | 38.00 | 39.99 | 85.00 | 80.00 | 30.00 | TS-O15 | |
| DSD-IC 40.00-43.99 | 40.00 | 43.99 | 86.00 | 80.00 | 33.00 | TS-O16 | |
| DSD-IC 44.00-46.99 | 44.00 | 46.99 | 96.00 | 90.00 | 37.00 | TS-O17 | |
| DSD-IC 47.00-51.99 | 47.00 | 51.99 | 97.00 | 90.00 | 41.00 | TS-O18 | |
| DSD-IC 52.00-56.99 | 52.00 | 56.99 | 107.00 | 100.00 | 44.00 | TS-O19 | |
| DSD-IC 57.00-60.99 | 57.00 | 60.99 | 118.00 | 110.00 | 49.00 | TS-O20 | |
| DSD-IC 61.00-67.99 | 61.00 | 67.99 | 119.00 | 110.00 | 53.00 | TS-O21 | |
| DSD-IC 68.00-74.99 | 68.00 | 74.99 | 129.00 | 120.00 | 59.00 | TS-O22 | |
| DSD-IC 75.00-80.99 | 75.00 | 80.99 | 161.00 | 150.00 | 65.00 | TS-O23 | |
| DSD-IC 81.00-90.99 | 81.00 | 90.99 | 162.00 | 150.00 | 71.00 | TS-O24 | |
| DSD-IC 91.00-98.99 | 91.00 | 98.99 | 162.00 | 150.00 | 79.00 | TS-O25 | |
| DSD-IC 99.00-106.99 | 99.00 | 106.99 | 163.00 | 150.00 | 90.00 | TS-O26 | |
| DSD-IC 107.00-110.99 | 107.00 | 110.99 | 164.00 | 150.00 | 90.00 | TS-O26 | |
| DSD-IC 111.00-122.99 | 111.00 | 122.99 | 165.00 | 150.00 | 102.00 | TS-O27 | |
| DSD-IC 123.00-134.99 | 123.00 | 134.99 | 167.00 | 150.00 | 114.00 | TS-O28 | |
| DSD-IC 135.00-148.99 | 135.00 | 148.99 | 168.00 | 150.00 | 126.00 | TS-O29 | |
| DSD-IC 149.00-161.99 | 149.00 | 161.99 | 170.00 | 150.00 | 139.00 | TS-O30 | |
| DSD-IC 162.00-168.99 | 162.00 | 168.99 | 211.00 | 190.00 | 151.00 | TS-O31 | |
| DSD-IC 169.00-173.99 | 169.00 | 173.99 | 211.00 | 190.00 | 151.00 | TS-O31 | |
| DSD-IC 174.00-185.99 | 174.00 | 185.99 | 213.00 | 190.00 | 163.00 | TS-O32 | |
| DSD-IC 186.00-197.99 | 186.00 | 197.99 | 212.00 | 190.00 | 175.00 | TS-O33 | |
| DSD-IC 198.00-209.99 | 198.00 | 209.99 | 215.00 | 190.00 | 187.00 | TS-O34 | |
| DSD-IC 210.00-221.99 | 210.00 | 221.99 | 217.00 | 190.00 | 199.00 | TS-O35 | |
| DSD-IC 222.00-232.99 | 222.00 | 232.99 | 218.00 | 190.00 | 211.00 | TS-O36 | |
| DSD-IC 233.00-233.99 | 233.00 | 233.99 | 217.00 | 190.00 | 211.00 | TS-O36 | |
| DSD-IC 234.00-245.99 | 234.00 | 245.99 | 219.00 | 190.00 | 223.00 | TS-O37 | |
| DSD-IC 246.00-257.99 | 246.00 | 257.99 | 221.00 | 190.00 | 235.00 | TS-O38 | |
| DSD-IC 258.00-269.99 | 258.00 | 269.99 | 242.00 | 210.00 | 245.00 | TS-O39 | |
| DSD-IC 270.00-281.99 | 270.00 | 281.99 | 244.00 | 210.00 | 259.00 | TS-O40 | |
| DSD-IC 282.00-293.99 | 282.00 | 293.99 | 245.00 | 210.00 | 271.00 | TS-O41 |
