DSD-EF-FT : Deep Single Tube Drills with External Thread Connection with Triangular Inserts (16-40 dia.)

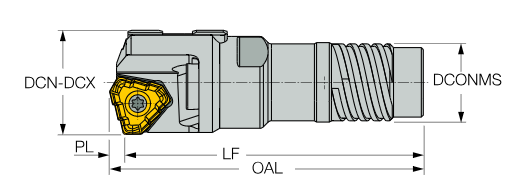

Designation		DCN	DCX	LF	OAL	PL	DCONMS	THOD
DSD-EF 14.00-14.60-FT		14.00	14.60	57.00	59.00	2.00	10.60	TS-I02
DSD-EF 14.61-15.59-FT		14.61	15.59	57.00	59.00	2.00	11.60	TS-I03
DSD-EF 15.60-15.99-FT		15.60	15.99	57.00	59.00	2.00	12.60	TS-I0
DSD-EF 16.00-16.70-FT		16.00	16.70	55.00	57.20	2.20	12.60	TS-I0
DSD-EF 16.71-17.70-FT		16.71	17.70	55.00	57.20	2.20	13.60	TS-I1
DSD-EF 17.71-18.90-FT		17.71	18.90	56.00	59.00	3.00	14.50	TS-I2
DSD-EF 18.91-20.00-FT		18.91	20.00	56.00	59.00	3.00	15.50	TS-I3
DSD-EF 20.01-21.80-FT		20.01	21.80	60.00	63.20	3.20	16.00	TS-I4
DSD-EF 21.81-21.99-FT		21.81	21.99	63.50	66.70	3.20	18.00	TS-I5
DSD-EF 22.00-24.10-FT		22.00	24.10	65.50	68.90	3.40	18.00	TS-I5
DSD-EF 24.11-25.00-FT		24.11	25.00	65.50	68.90	3.40	19.50	TS-I6
DSD-EF 25.01-26.40-FT		25.01	26.40	67.50	71.10	3.60	19.50	TS-I6
DSD-EF 26.41-28.00-FT		26.41	28.00	67.50	71.10	3.60	21.00	TS-I7
DSD-EF 28.01-28.70-FT		28.01	28.70	70.00	74.57	4.57	21.00	TS-I7
DSD-EF 28.71-31.00-FT		28.71	31.00	75.00	79.57	4.57	23.50	TS-I8
DSD-EF 31.01-32.00-FT		31.01	32.00	75.00	79.57	4.57	25.50	TS-I9
DSD-EF 32.01-33.30-FT		32.01	33.30	74.50	74.93	5.43	25.50	TS-I9
DSD-EF 33.31-36.20-FT		33.31	36.20	79.50	84.93	5.43	28.00	TS-I10
DSD-EF 36.21-39.60-FT		36.21	39.60	89.50	94.93	5.43	30.00	TS-I11
DSD-EF 39.61-40.00-FT		39.61	40.00	94.50	99.93	5.43	33.00	TS-I12
