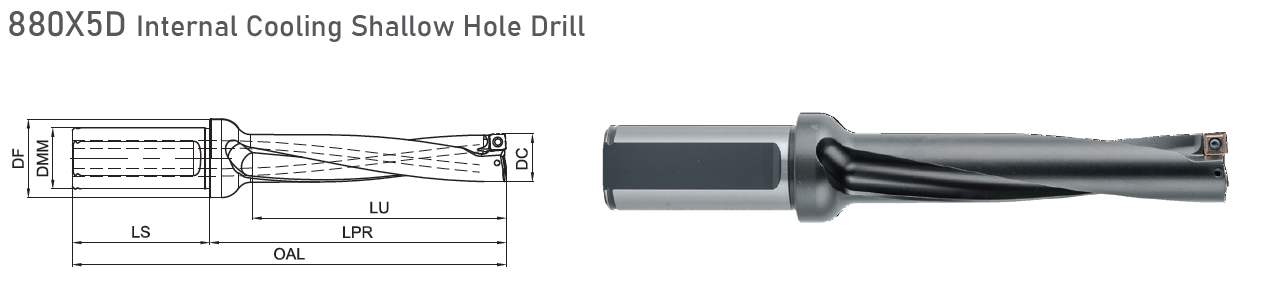

880X5D_daoism

880X5D

Diameter	Drill Body Type	DC	DMM	DF	LS	LU	LPR	OAL	Weight	In Stock	Inner Insert	External Insert
Diameter	Drill Body Type	DC	DMM	DF	LS	LU	LPR	OAL	(kg)	In Stock	Inner Insert	External Insert
14	880-140-5D-FC20-Q04S	14	20	25	50	73	86	136	0.18	●
14.5	880-145-5D-FC20-Q04S	14.5	20	25	50	77	90	140	1.19	●	QXMG040204	QXMG040204
15	880-150-5D-FC20-Q04S	15	20	25	50	79	92	142	0.2	●	SXMG040204-C	QXMG040204-P
15.5	880-155-5D-FC20-Q04S	15.5	20	25	50	81	95	145	0.2	●
16	880-160-5D-FC20-Q05S	16	20	25	50	83	98	148	0.2	●
16.5	880-165-5D-FC20-Q05S	16.5	20	25	50	87	101	151	0.21	●
17	880-170-5D-FC25-Q05S	17	25	32	50	90	104	160	0.33	●	QXMG050204	QXMG050204
17.5	880-175-5D-FC25-Q05S	17.5	25	32	56	93	107	163	0.34	●	SXMG050204-C	QXMG050204-P
18	880-180-5D-FC25-Q05S	18	25	32	56	94	107	165	0.34	●
18.5	880-185-5D-FC25-Q05S	18.5	25	32	56	97	112	168	0.35	●
19	880-190-5D-FC25-Q06S	19	25	32	56	99	114	170	0.36	●
19.5	880-195-5D-FC25-Q06S	19.5	25	32	56	103	118	174	0.37	●
20	880-200-5D-FC25-Q06S	20	25	32	56	104	121	177	0.39	●
20.5	880-205-5D-FC25-Q06S	20.5	25	32	56	107	124	180	0.4	●	QXMG060204	QXMG060204
21	880-210-5D-FC25-Q06S	21	25	32	56	109	126	182	0.4	●	SXMG060204-C	QXMG060204-P
21.5	880-215-5D-FC25-Q06S	21.5	25	32	56	112	129	185	0.41	●
22	880-220-5D-FC25-Q06S	22	25	32	56	113	131	187	0.42	●
22.5	880-225-5D-FC25-Q06S	22.5	25	32	56	116	134	190	0.43	●
23	880-230-5D-FC32-Q07S	23	32	40	60	120	138	198	0.63	●
23.5	880-235-5D-FC32-Q07S	23.5	32	40	60	122	140	200	0.64	●
24	880-240-5D-FC32-Q07S	24	32	40	60	124	143	203	0.67	●
24.5	880-245-5D-FC32-Q07S	24.5	32	40	60	127	146	206	0.69	●	QXMG07T306	QXMG07T306
25	880-250-5D-FC32-Q07S	25	32	40	60	129	147	209	0.71	●	SXMG07T306-C	QXMG07T306-P
25.5	880-255-5D-FC32-Q07S	25.5	32	40	60	133	153	213	0.73	●
26	880-260-5D-FC32-Q07S	26	32	40	60	137	157	217	0.76	●
26.5	880-265-5D-FC32-Q07S	26.5	32	40	60	138	158	218	0.77	●
27	880-270-5D-FC32-Q07S	27	32	40	60	139	159	219	0.81	●
27.5	880-275-5D-FC32-Q09S	27.5	32	40	60	142	162	222	0.82	●
28	880-280-5D-FC32-Q09S	28	32	40	60	143	165	225	0.81	●
28.5	880-285-5D-FC32-Q09S	28.5	32	40	60	147	169	229	0.83	●
29	880-290-5D-FC32-Q09S	29	32	40	60	150	171	231	0.87	●
29.5	880-295-5D-FC32-Q09S	29.5	32	40	60	153	174	234	0.89	●	QXMG09T308	QXMG09T308
30	880-300-5D-FC32-Q09S	30	32	40	60	155	177	237	0.9	●	SXMG09T308-C	QXMG09T308-P
30.5	880-305-5D-FC32-Q09S	30.5	32	40	60	158	180	240	0.93	●
31	880-310-5D-FC40-Q09S	31	40	48	70	160	183	253	1.29	●
31.5	880-315-5D-FC40-Q09S	31.5	40	48	70	163	186	256	1.31	●
32	880-320-5D-FC40-Q09S	32	40	48	70	166	188	258	1.33	●
32.5	880-325-5D-FC40-Q09S	32.5	40	48	70	170	192	262	1.37	●
33	880-330-5D-FC40-Q09S	33	40	48	70	171	194	264	1.43	●
33.5	880-335-5D-FC40-Q11S	33.5	40	48	70	175	199	269	1.43	○
34	880-340-5D-FC40-Q11S	34	40	48	70	176	199	269	1.55	●
34.5	880-345-5D-FC40-Q11S	34.5	40	48	70	176	199	269	1.55	○
35	880-350-5D-FC40-Q11S	35	40	48	70	181	205	275	1.61	●
35.5	880-355-5D-FC40-Q11S	35.5	40	48	70	182	205	275	1.61	○	QXMG110408	QXMG110408
36	880-360-5D-FC40-Q11S	36	40	48	70	186	211	281	1.66	●	SXMG110408-C	QXMG110408-P
36.5	880-365-5D-FC40-Q11S	36.5	40	48	70	189	214	284	1.66	○
37	880-370-5D-FC40-Q11S	37	40	48	70	191	216	286	1.77	●
37.5	880-375-5D-FC40-Q11S	37.5	40	48	70	195	220	290	1.77	○
38	880-380-5D-FC40-Q11S	38	40	48	70	195	222	292	1.82	●
38.5	880-385-5D-FC40-Q11S	38.5	40	48	70	198	225	295	1.82	○
39	880-390-5D-FC40-Q11S	39	40	48	70	204	227	297	1.89	●
39.5	880-395-5D-FC40-Q11S	39.5	40	48	70	207	233	303	1.89	○
