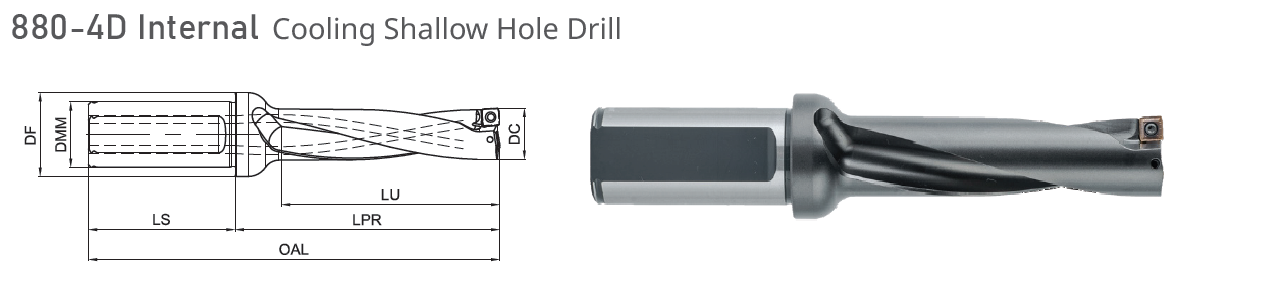

880X4D
| Diameter | Drill Body Type | DC | DMM | DF | LS | LU | LPR | OAL | Weight | In Stock | Inner Insert | External Insert |
| (kg) | ||||||||||||
| 14 | 880-140-4D-FC20-Q04S | 14 | 20 | 25 | 50 | 59 | 72 | 122 | 0.17 | ● | ||
| 14.5 | 880-145-4D-FC20-Q04S | 14.5 | 20 | 25 | 50 | 63 | 75 | 125 | 0.18 | ● | QXMG040204 | QXMG040204 |
| 15 | 880-150-4D-FC20-Q04S | 15 | 20 | 25 | 50 | 64 | 77 | 127 | 0.19 | ● | SXMG040204-C | QXMG040204-P |
| 15.5 | 880-155-4D-FC20-Q04S | 15.5 | 20 | 25 | 50 | 66 | 79 | 129 | 0.19 | ● | ||
| 16 | 880-160-4D-FC20-Q05S | 16 | 20 | 25 | 50 | 67 | 82 | 132 | 0.19 | ● | ||
| 16.5 | 880-165-4D-FC20-Q05S | 16.5 | 20 | 25 | 50 | 70 | 84 | 134 | 0.2 | ● | ||
| 17 | 880-170-4D-FC25-Q05S | 17 | 25 | 32 | 56 | 71 | 86 | 142 | 0.31 | ● | QXMG050204 | QXMG050204 |
| 17.5 | 880-175-4D-FC25-Q05S | 17.5 | 25 | 32 | 56 | 74 | 89 | 145 | 0.22 | ● | SXMG050204-C | QXMG050204-P |
| 18 | 880-180-4D-FC25-Q05S | 18 | 25 | 32 | 56 | 76 | 91 | 147 | 0.32 | ● | ||
| 18.5 | 880-185-4D-FC25-Q05S | 18.5 | 25 | 32 | 56 | 78 | 93 | 149 | 0.33 | ● | ||
| 19 | 880-190-4D-FC25-Q06S | 19 | 25 | 32 | 56 | 79 | 95 | 151 | 0.34 | ● | ||
| 19.5 | 880-195-4D-FC25-Q06S | 19.5 | 25 | 32 | 56 | 83 | 99 | 155 | 0.35 | ● | ||
| 20 | 880-200-4D-FC25-Q06S | 20 | 25 | 32 | 56 | 84 | 101 | 157 | 0.36 | ● | QXMG060204 | QXMG060204 |
| 20.5 | 880-205-4D-FC25-Q06S | 20.5 | 25 | 32 | 56 | 87 | 103 | 159 | 0.37 | ● | SXMG060204-C | QXMG060204-P |
| 21 | 880-210-4D-FC25-Q06S | 21 | 25 | 32 | 56 | 88 | 105 | 161 | 0.37 | ● | ||
| 21.5 | 880-215-4D-FC25-Q06S | 21.5 | 25 | 32 | 56 | 90 | 107 | 163 | 0.38 | ● | ||
| 22 | 880-220-4D-FC25-Q06S | 22 | 25 | 32 | 56 | 92 | 109 | 165 | 0.39 | ● | ||
| 22.5 | 880-225-4D-FC25-Q06S | 22.5 | 25 | 32 | 56 | 95 | 112 | 168 | 0.4 | ● | ||
| 23 | 880-230-4D-FC25-Q07S | 23 | 25 | 32 | 56 | 99 | 114 | 170 | 0.39 | ● | ||
| 23.5 | 880-235-4D-FC25-Q07S | 23.5 | 25 | 32 | 56 | 102 | 117 | 173 | 0.41 | ● | ||
| 24 | 880-240-4D-FC25-Q07S | 24 | 25 | 32 | 56 | 101 | 119 | 175 | 0.44 | ● | ||
| 24.5 | 880-245-4D-FC25-Q07S | 24.5 | 25 | 32 | 56 | 104 | 122 | 178 | 0.45 | ● | QXMG07T306 | QXMG07T306 |
| 25 | 880-250-4D-FC25-Q07S | 25 | 25 | 32 | 56 | 104 | 124 | 180 | 0.47 | ● | SXMG07T306-C | QXMG07T306-P |
| 25.5 | 880-255-4D-FC32-Q07S | 25.5 | 32 | 40 | 60 | 107 | 126 | 186 | 0.68 | ● | ||
| 26 | 880-260-4D-FC32-Q07S | 26 | 32 | 40 | 60 | 108 | 128 | 188 | 0.7 | ● | ||
| 26.5 | 880-265-4D-FC32-Q07S | 26.5 | 32 | 40 | 60 | 110 | 130 | 190 | 0.71 | ● | ||
| 27 | 880-270-4D-FC32-Q07S | 27 | 32 | 40 | 60 | 112 | 132 | 192 | 0.74 | ● | ||
| 27.5 | 880-275-4D-FC32-Q09S | 27.5 | 32 | 40 | 60 | 113 | 135 | 195 | 0.75 | ● | ||
| 28 | 880-280-4D-FC32-Q09S | 28 | 32 | 40 | 60 | 115 | 137 | 197 | 0.73 | ● | ||
| 28.5 | 880-285-4D-FC32-Q09S | 28.5 | 32 | 40 | 60 | 118 | 139 | 199 | 0.76 | ● | ||
| 29 | 880-290-4D-FC32-Q09S | 29 | 32 | 40 | 60 | 120 | 141 | 201 | 0.79 | ● | QXMG09T308 | QXMG09T308 |
| 29.5 | 880-295-4D-FC32-Q09S | 29.5 | 32 | 40 | 60 | 123 | 144 | 204 | 0.81 | ● | SXMG09T308-C | QXMG09T308-P |
| 30 | 880-300-4D-FC32-Q09S | 30 | 32 | 40 | 60 | 125 | 147 | 207 | 0.83 | ● | ||
| 30.5 | 880-305-4D-FC32-Q09S | 30.5 | 32 | 40 | 60 | 126 | 148 | 208 | 0.85 | ○ | ||
| 31 | 880-310-4D-FC40-Q09S | 31 | 40 | 48 | 70 | 129 | 152 | 222 | 1.19 | ● | ||
| 31.5 | 880-315-4D-FC40-Q09S | 31.5 | 40 | 48 | 70 | 131 | 154 | 224 | 1.21 | ○ | ||
| 32 | 880-320-4D-FC40-Q09S | 32 | 40 | 48 | 70 | 134 | 156 | 226 | 1.23 | ● | ||
| 32.5 | 880-325-4D-FC40-Q09S | 32.5 | 40 | 48 | 70 | 137 | 159 | 229 | 1.25 | ● | ||
| 33 | 880-330-4D-FC40-Q09S | 33 | 40 | 48 | 70 | 138 | 161 | 231 | 1.3 | ● | ||
| 33.5 | 880-335-4D-FC40-Q11S | 33.5 | 40 | 48 | 70 | 142 | 163 | 233 | 1.32 | ● | ||
| 34 | 880-340-4D-FC40-Q11S | 34 | 40 | 48 | 70 | 142 | 165 | 235 | 1.32 | ● | ||
| 34.5 | 880-345-4D-FC40-Q11S | 34.5 | 40 | 48 | 70 | 142 | 168 | 238 | 1.35 | ○ | ||
| 35 | 880-350-4D-FC40-Q11S | 35 | 40 | 48 | 70 | 146 | 170 | 240 | 1.38 | ● | ||
| 35.5 | 880-355-4D-FC40-Q11S | 35.5 | 40 | 48 | 70 | 146 | 173 | 243 | 1.41 | ○ | QXMG110408 | QXMG110408 |
| 36 | 880-360-4D-FC40-Q11S | 36 | 40 | 48 | 70 | 150 | 175 | 245 | 1.43 | ● | SXMG110408-C | QXMG110408-P |
| 36.5 | 880-365-4D-FC40-Q11S | 36.5 | 40 | 48 | 70 | 152 | 177 | 247 | 1.46 | ○ | ||
| 37 | 880-370-4D-FC40-Q11S | 37 | 40 | 48 | 70 | 154 | 179 | 249 | 1.54 | ● | ||
| 37.5 | 880-375-4D-FC40-Q11S | 37.5 | 40 | 48 | 70 | 158 | 182 | 252 | 1.57 | ● | ||
| 38 | 880-380-4D-FC40-Q11S | 38 | 40 | 48 | 70 | 157 | 184 | 254 | 1.59 | ● | ||
| 38.5 | 880-385-4D-FC40-Q11S | 38.5 | 40 | 48 | 70 | 160 | 186 | 256 | 1.62 | ○ | ||
| 39 | 880-390-4D-FC40-Q11S | 39 | 40 | 48 | 70 | 165 | 188 | 258 | 1.66 | ● | ||
| 39.5 | 880-395-4D-FC40-Q11S | 39.5 | 40 | 48 | 70 | 166 | 191 | 261 | 1.7 | ● | ||
| 40 | 880-400-4D-FC40-Q11S | 40 | 40 | 48 | 70 | 164 | 193 | 263 | 1.71 | ● | ||
| 40.5 | 880-405-4D-FC40-Q13S | 40.5 | 40 | 48 | 70 | 167 | 195 | 265 | 1.91 | ○ | ||
| 41 | 880-410-4D-FC40-Q13S | 41 | 40 | 48 | 70 | 169 | 198 | 268 | 1.91 | ○ | ||
| 41.5 | 880-415-4D-FC40-Q13S | 41.5 | 40 | 48 | 70 | 171 | 200 | 270 | 1.91 | ○ | QXMG130408 | QXMG130408 |
| 42 | 880-420-4D-FC40-Q13S | 42 | 40 | 48 | 70 | 174 | 202 | 272 | 1.91 | ○ | SXMG130408-C | QXMG130408-P |
| 42.5 | 880-425-4D-FC40-Q13S | 42.5 | 40 | 48 | 70 | 175 | 204 | 274 | 1.91 | ○ | ||
| 43 | 880-430-4D-FC40-Q13S | 43 | 40 | 48 | 70 | 177 | 207 | 277 | 1.91 | ○ | ||
| 43.5 | 880-435-4D-FC40-Q13S | 43.5 | 40 | 48 | 70 | 179 | 209 | 279 | 1.91 | ○ | ||
| 44 | 880-440-4D-FC40-Q13S | 44 | 40 | 48 | 70 | 181 | 211 | 281 | 1.91 | ○ |
