880X2D_daoism

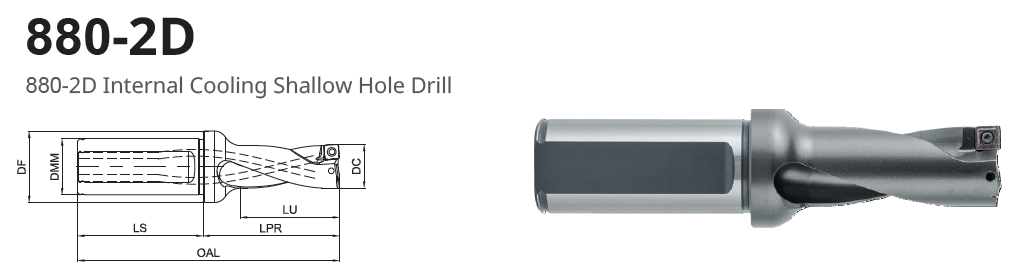

880X2D

Diameter	Drill Body Type	DC	DMM	DF	LS	LU	LPR	OAL	Weight	In Stock	Inner Insert	External Insert
Diameter	Drill Body Type	DC	DMM	DF	LS	LU	LPR	OAL	(kg)	In Stock	Inner Insert	External Insert
14	880-140-2D-FC20-Q04S	14	20	25	50	31	44	94	0.16	●

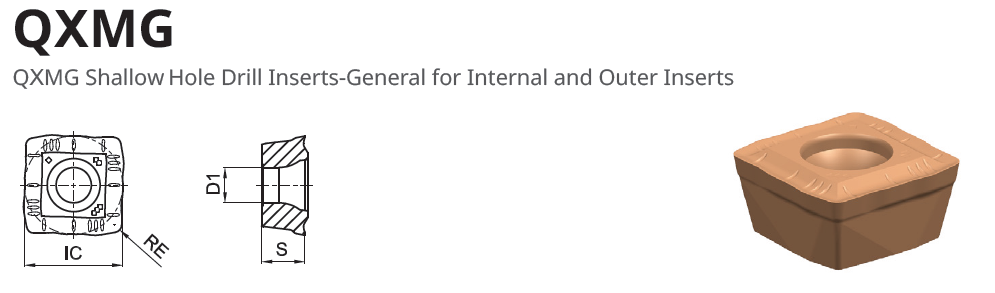

14.5	880-145-2D-FC20-Q04S	14.5	20	25	50	33	46	96	0.16	●	QXMG040204	QXMG040204

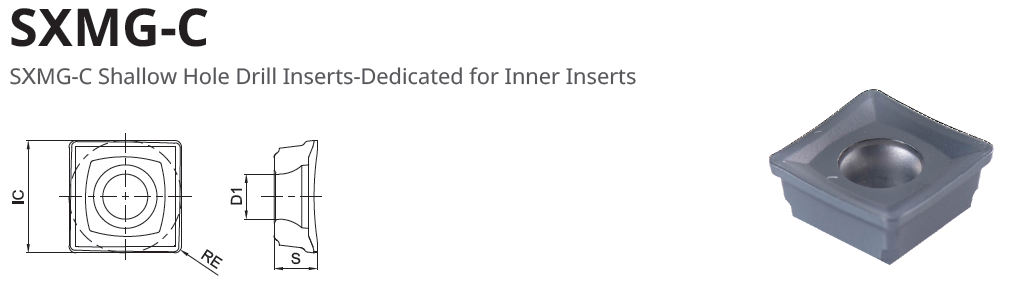

15	880-150-2D-FC20-Q04S	15	20	25	50	35	47	97	0.16	●	SXMG040204-C	QXMG040204-P
15.5	880-155-2D-FC20-Q04S	15.5	20	25	50	37	49	99	0.17	●
16	880-160-2D-FC20-Q05S	16	20	25	50	37	51	101	0.17	●
16.5	880-165-2D-FC20-Q05S	16.5	20	25	50	38	52	102	0.17	●
17	880-170-2D-FC25-Q05S	17	25	32	56	38	53	109	0.28	●	QXMG050204	QXMG050204
17.5	880-175-2D-FC25-Q05S	17.5	25	32	56	39	55	111	0.29	●	SXMG050204-C	QXMG050204-P
18	880-180-2D-FC25-Q05S	18	25	32	56	41	56	112	0.29	●
18.5	880-185-2D-FC25-Q05S	18.5	25	32	56	42	57	113	0.29	●
19	880-190-2D-FC25-Q06S	19	25	32	56	42	58	114	0.3	●
19.5	880-195-2D-FC25-Q06S	19.5	25	32	56	44	60	116	0.3	●
20	880-200-2D-FC25-Q06S	20	25	32	56	44	61	117	0.31	●
20.5	880-205-2D-FC25-Q06S	20.5	25	32	56	45	62	118	0.32	●	QXMG060204	QXMG060204
21	880-210-2D-FC25-Q06S	21	25	32	56	47	64	120	0.32	●	SXMG060204-C	QXMG060204-P
21.5	880-215-2D-FC25-Q06S	21.5	25	32	56	48	65	121	0.32	●
22	880-220-2D-FC25-Q06S	22	25	32	56	49	66	122	0.32	●
22.5	880-225-2D-FC25-Q06S	22.5	25	32	56	51	68	124	0.33	●
23	880-230-2D-FC25-Q07S	23	25	32	56	50	69	125	0.34	●
23.5	880-235-2D-FC25-Q07S	23.5	25	32	56	51	70	126	0.35	●
24	880-240-2D-FC25-Q07S	24	25	32	56	53	71	127	0.35	●
24.5	880-245-2D-FC25-Q07S	24.5	25	32	56	55	73	129	0.36	●	QXMG07T306	QXMG07T306
25	880-250-2D-FC25-Q07S	25	25	32	56	54	74	130	0.37	●	QXMG07T306	QXMG07T306
25.5	880-255-2D-FC32-Q07S	25.5	32	40	60	55	76	136	0.58	●	SXMG07T306-C	QXMG07T306-P
26	880-260-2D-FC32-Q07S	26	32	40	60	56	77	137	0.58	●
26.5	880-265-2D-FC32-Q07S	26.5	32	40	60	58	78	138	0.59	●
27	880-270-2D-FC32-Q07S	27	32	40	60	59	79	139	0.6	●
27.5	880-275-2D-FC32-Q09S	27.5	32	40	60	61	81	141	0.59	●
28	880-280-2D-FC32-Q09S	28	32	40	60	60	82	142	0.61	●
28.5	880-285-2D-FC32-Q09S	28.5	32	40	60	62	83	143	0.62	●
29	880-290-2D-FC32-Q09S	29	32	40	60	63	84	144	0.63	●
29.5	880-295-2D-FC32-Q09S	29.5	32	40	60	65	86	146	0.64	●
30	880-300-2D-FC32-Q09S	30	32	40	60	65	87	147	0.64	●
30.5	880-305-2D-FC32-Q09S	30.5	32	40	60	68	89	149	0.66	●	QXMG09T308	QXMG09T308
31	880-310-2D-FC40-Q09S	31	40	48	70	67	90	160	1	●	SXMG09T308-C	QXMG09T308-P
31.5	880-315-2D-FC40-Q09S	31.5	40	48	70	68	91	161	1.01	●
32	880-320-2D-FC40-Q09S	32	40	48	70	70	92	162	1.02	●
32.5	880-325-2D-FC40-Q09S	32.5	40	48	70	72	94	164	1.04	●
33	880-330-2D-FC40-Q09S	33	40	48	70	71	95	165	1.05	●
33.5	880-335-2D-FC40-Q11S	33.5	40	48	70	73	97	167	1.06	●
34	880-340-2D-FC40-Q11S	34	40	48	70	75	98	168	1.07	●
34.5	880-345-2D-FC40-Q11S	34.5	40	48	70	76	99	169	1.09	●
35	880-350-2D-FC40-Q11S	35	40	48	70	78	101	171	1.11	●
35.5	880-355-2D-FC40-Q11S	35.5	40	48	70	79	102	172	1.12	●
36	880-360-2D-FC40-Q11S	36	40	48	70	78	104	174	1.14	●
36.5	880-365-2D-FC40-Q11S	36.5	40	48	70	80	105	175	1.15	●	QXMG110408	QXMG110408
37	880-370-2D-FC40-Q11S	37	40	48	70	80	105	175	1.16	●	SXMG110408-C	QXMG110408-P
37.5	880-375-2D-FC40-Q11S	37.5	40	48	70	81	106	176	1.17	●
38	880-380-2D-FC40-Q11S	38	40	48	70	82	108	178	1.2	●
38.5	880-385-2D-FC40-Q11S	38.5	40	48	70	84	109	179	1.22	●
39	880-390-2D-FC40-Q11S	39	40	48	70	85	110	180	1.23	●
39.5	880-395-2D-FC40-Q11S	39.5	40	48	70	85	112	182	1.25	●
40	880-400-2D-FC40-Q11S	40	40	48	70	86	113	183	1.27	●
40.5	880-405-2D-FC40-Q13S	40.5	40	48	70	89	115	185	1.91	●
41	880-410-2D-FC40-Q13S	41	40	48	70	92	117	187	1.91	●
41.5	880-415-2D-FC40-Q13S	41.5	40	48	70	94	118	188	1.91	○
42	880-420-2D-FC40-Q13S	42	40	48	70	92	119	189	1.91	●
42.5	880-425-2D-FC40-Q13S	42.5	40	48	70	92	121	191	1.91	○	QXMG130408	QXMG130408
43	880-430-2D-FC40-Q13S	43	40	48	70	94	122	192	1.91	●	SXMG130408-C	QXMG130408-P
43.5	880-435-2D-FC40-Q13S	43.5	40	48	70	96	123	193	1.91	●
44	880-440-2D-FC40-Q13S	44	40	48	70	98	124	194	1.91	○
44.5	880-445-2D-FC40-Q13S	44.5	40	48	70	99	125	195	1.91	○
45	880-450-2D-FC40-Q13S	45	40	48	70	103	127	197	1.91	●
45.5	880-455-2D-FC40-Q15S	45.5	40	48	70	97	128	198	1.79	●
46	880-460-2D-FC40-Q15S	46	40	48	70	102	130	200	1.79	●
46.5	880-465-2D-FC40-Q15S	46.5	40	48	70	100	131	201	1.79	○	QXMG150512	Q MG150512
47	880-470-2D-FC40-Q15S	47	40	48	70	102	132	202	1.79	●	SXMG150512-C	Q MG150512-P
47.5	880-475-2D-FC40-Q15S	47.5	40	48	70	106	133	203	1.79	○
48	880-480-2D-FC40-Q15S	48	40	48	70	110	135	205	1.79	●
