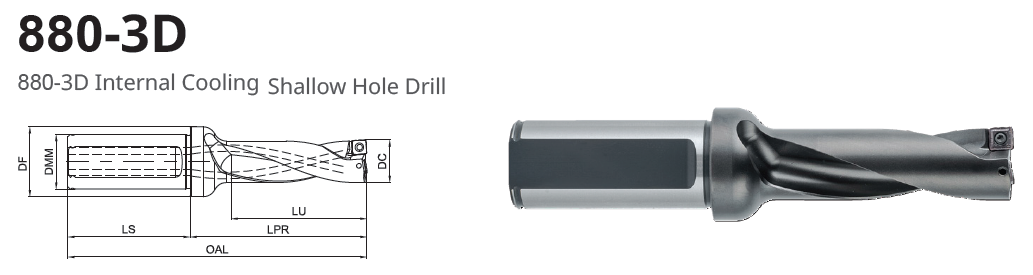

880X3D_daoism

880X3D

Diameter	Drill Body Type	DC	DMM	DF	LS	LU	LPR	OAL	Weight	In Stock	Inner Insert	External Insert
									(kg)
14	880-140-3D-FC20-Q04S	14	20	25	50	45	58	108	0.16	●
14.5	880-145-3D-FC20-Q04S	14.5	20	25	50	47	60	110	0.17	●	QXMG040204	QXMG040204
15	880-150-3D-FC20-Q04S	15	20	25	50	50	62	112	0.17	●	SXMG040204-C	QXMG040204-P
15.5	880-155-3D-FC20-Q04S	15.5	20	25	50	52	64	114	0.18	●
16	880-160-3D-FC20-Q05S	16	20	25	50	51	66	116	0.18	●
16.5	880-165-3D-FC20-Q05S	16.5	20	25	50	53	68	118	0.18	●
17	880-170-3D-FC25-Q05S	17	25	32	56	54	69	125	0.29	●	QXMG050204	QXMG050204
17.5	880-175-3D-FC25-Q05S	17.5	25	32	56	56	72	128	0.3	●	SXMG050204-C	QXMG050204-P
18	880-180-3D-FC25-Q05S	18	25	32	56	58	73	129	0.3	●
18.5	880-185-3D-FC25-Q05S	18.5	25	32	56	60	75	131	0.31	●
19	880-190-3D-FC25-Q06S	19	25	32	56	60	76	132	0.32	●
19.5	880-195-3D-FC25-Q06S	19.5	25	32	56	62	79	135	0.33	●
20	880-200-3D-FC25-Q06S	20	25	32	56	64	81	137	0.34	●
20.5	880-205-3D-FC25-Q06S	20.5	25	32	56	65	82	138	0.34	●	QXMG060204	QXMG060204
21	880-210-3D-FC25-Q06S	21	25	32	56	67	84	140	0.34	●	SXMG060204-C	QXMG060204-P
21.5	880-215-3D-FC25-Q06S	21.5	25	32	56	69	86	142	0.35	●
22	880-220-3D-FC25-Q06S	22	25	32	56	69	87	143	0.35	●
22.5	880-225-3D-FC25-Q06S	22.5	25	32	56	72	90	146	0.36	●
23	880-230-3D-FC25-Q07S	23	25	32	56	72	91	147	0.36	●
23.5	880-235-3D-FC25-Q07S	23.5	25	32	56	75	93	149	0.38	●
24	880-240-3D-FC25-Q07S	24	25	32	56	76	95	151	0.39	●
24.5	880-245-3D-FC25-Q07S	24.5	25	32	56	77	97	153	0.41	●
25	880-250-3D-FC25-Q07S	25	25	32	56	79	99	155	0.41	●	QXMG07T306	QXMG07T306
25.5	880-255-3D-FC32-Q07S	25.5	32	40	60	80	100	160	0.62	●	SXMG07T306-C	QXMG07T306-P
26	880-260-3D-FC32-Q07S	26	32	40	60	81	102	162	0.63	●
26.5	880-265-3D-FC32-Q07S	26.5	32	40	60	84	104	164	0.65	●
27	880-270-3D-FC32-Q07S	27	32	40	60	85	105	165	0.66	●
27.5	880-275-3D-FC32-Q09S	27.5	32	40	60	88	108	168	0.68	●
28	880-280-3D-FC32-Q09S	28	32	40	60	87	109	169	0.69	●
28.5	880-285-3D-FC32-Q09S	28.5	32	40	60	90	111	171	0.69	●
29	880-290-3D-FC32-Q09S	29	32	40	60	91	112	172	0.71	●
29.5	880-295-3D-FC32-Q09S	29.5	32	40	60	93	115	175	0.72	●	QXMG09T308	QXMG09T308
30	880-300-3D-FC32-Q09S	30	32	40	60	95	117	177	0.73	●	SXMG09T308-C	QXMG09T308-P
30.5	880-305-3D-FC32-Q09S	30.5	32	40	60	97	118	178	0.74	●
31	880-310-3D-FC40-Q09S	31	40	48	70	98	121	191	1.09	●
31.5	880-315-3D-FC40-Q09S	31.5	40	48	70	98	122	192	1.11	●
32	880-320-3D-FC40-Q09S	32	40	48	70	101	124	194	1.12	●
32.5	880-325-3D-FC40-Q09S	32.5	40	48	70	103	126	196	1.14	●
33	880-330-3D-FC40-Q09S	33	40	48	70	104	128	198	1.16	●
33.5	880-335-3D-FC40-Q11S	33.5	40	48	70	106	130	200	1.15	●
34	880-340-3D-FC40-Q11S	34	40	48	70	108	131	201	1.17	●
34.5	880-345-3D-FC40-Q11S	34.5	40	48	70	109	134	204	1.22	●
35	880-350-3D-FC40-Q11S	35	40	48	70	112	135	205	1.24	●
35.5	880-355-3D-FC40-Q11S	35.5	40	48	70	114	137	207	1.26	●
36	880-360-3D-FC40-Q11S	36	40	48	70	113	139	209	1.27	●
36.5	880-365-3D-FC40-Q11S	36.5	40	48	70	116	141	211	1.3	●	QXMG110408	QXMG110408
37	880-370-3D-FC40-Q11S	37	40	48	70	117	142	212	1.31	●	SXMG110408-C	QXMG110408-P
37.5	880-375-3D-FC40-Q11S	37.5	40	48	70	118	144	214	1.34	●
38	880-380-3D-FC40-Q11S	38	40	48	70	122	146	216	1.37	●
38.5	880-385-3D-FC40-Q11S	38.5	40	48	70	122	148	218	1.4	●
39	880-390-3D-FC40-Q11S	39	40	48	70	125	149	219	1.42	●
39.5	880-395-3D-FC40-Q11S	39.5	40	48	70	124	151	221	1.43	●
40	880-400-3D-FC40-Q11S	40	40	48	70	126	153	223	1.45	●
40.5	880-405-3D-FC40-Q13S	40.5	40	48	70	126	155	225	1.91	●
41	880-410-3D-FC40-Q13S	41	40	48	70	129	157	227	1.91	●
41.5	880-415-3D-FC40-Q13S	41.5	40	48	70	132	156	226.1	1.91	●
42	880-420-3D-FC40-Q13S	42	40	48	70	133	160	230	1.91	●
42.5	880-425-3D-FC40-Q13S	42.5	40	48	70	133	162	232	1.91	●	QXMG130408	QXMG130408
43	880-430-3D-FC40-Q13S	43	40	48	70	135	164	234	1.91	●	SXMG130408-C	QXMG130408-P
43.5	880-435-3D-FC40-Q13S	43.5	40	48	70	136	166	236	1.91	●
44	880-440-3D-FC40-Q13S	44	40	48	70	137	167	237	1.91	●
44.5	880-445-3D-FC40-Q13S	44.5	40	48	70	139	170	240	1.91	●
45	880-450-3D-FC40-Q13S	45	40	48	70	142	172	242	1.79	●
45.5	880-455-3D-FC40-Q15S	45.5	40	48	70	143	174	244	1.79	○
46	880-460-3D-FC40-Q15S	46	40	48	70	146	176	246	1.79	●
46.5	880-465-3D-FC40-Q15S	46.5	40	48	70	150	178	248	1.79	○	QXMG150512	QXMG150512
47	880-470-3D-FC40-Q15S	47	40	48	70	152	179	249	1.79	○	SXMG150512-C	QXMG150512-P
47.5	880-475-3D-FC40-Q15S	47.5	40	48	70	155	181	251	1.79	○
48	880-480-3D-FC40-Q15S	48	40	48	70	159	183	253	1.79	●
