GD-DHL (14.00-28.58)
GD-DHL (14.00-28.58) : Gundrills Carrying Indexable Inserts with 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality.

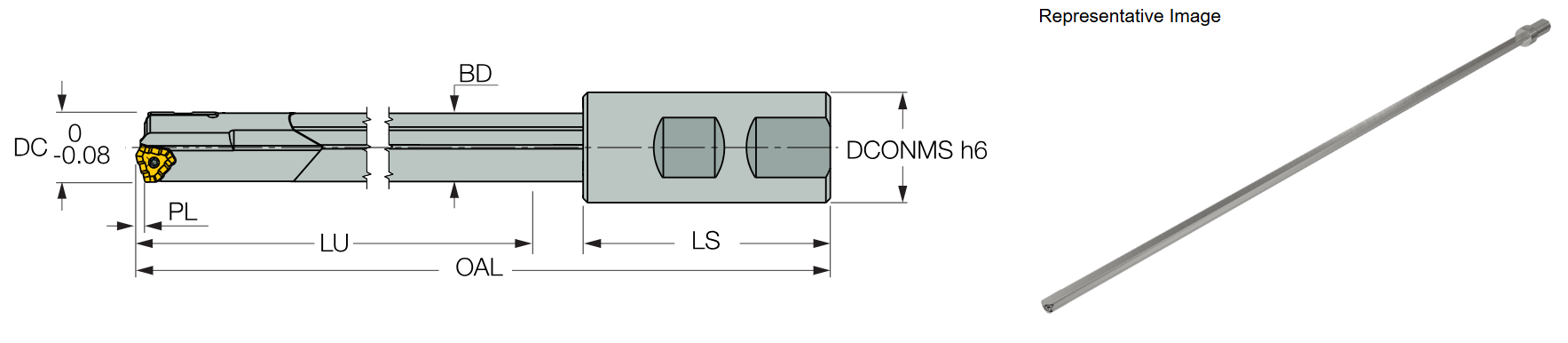

| Designation | DC | LU | OAL | DCONMS | BD | PL | LS | Insert | |
|---|---|---|---|---|---|---|---|---|---|
| GD-DHL 14.00-800-23 | 14.00 | 725.00 | 802.00 | 25.00 | 13.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 14.00-800-U04 | 14.00 | 711.00 | 802.00 | 25.40 | 13.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 14.00-1000-23 | 14.00 | 925.00 | 1002.00 | 25.00 | 13.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 14.00-1000-U04 | 14.00 | 911.00 | 1002.00 | 25.40 | 13.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 14.00-1650-23 | 14.00 | 1575.00 | 1652.00 | 25.00 | 13.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 14.00-1650-U04 | 14.00 | 1561.00 | 1652.00 | 25.40 | 13.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 14.50-800-23 | 14.50 | 724.00 | 802.00 | 25.00 | 14.00 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 14.50-800-U04 | 14.50 | 710.00 | 802.00 | 25.40 | 14.00 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 14.50-1000-23 | 14.50 | 924.00 | 1002.00 | 25.00 | 14.00 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 14.50-1000-U04 | 14.50 | 910.00 | 1002.00 | 25.40 | 14.00 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 14.50-1650-23 | 14.50 | 1574.00 | 1652.00 | 25.00 | 14.00 | 1.500 | 56.0 | TOGT 07... | |
| GD-DHL 14.50-1650-U04 | 14.50 | 1560.00 | 1652.00 | 25.40 | 14.00 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 15.00-800-23 | 15.00 | 723.00 | 802.00 | 25.00 | 14.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 15.00-800-U04 | 15.00 | 709.00 | 802.00 | 25.40 | 14.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 15.00-1000-23 | 15.00 | 923.00 | 1002.00 | 25.00 | 14.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 15.00-1000-U04 | 15.00 | 909.00 | 1002.00 | 25.40 | 14.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 15.00-1650-23 | 15.00 | 1573.00 | 1652.00 | 25.00 | 14.50 | 1.950 | 56.0 | TOGT 07... | |
| GD-DHL 15.00-1650-U04 | 15.00 | 1559.00 | 1652.00 | 25.40 | 14.50 | 1.950 | 70.0 | TOGT 07... | |
| GD-DHL 16.00-800-23 | 16.00 | 722.20 | 802.20 | 25.00 | 15.50 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 16.00-800-U04 | 16.00 | 708.20 | 802.20 | 25.40 | 15.50 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 16.00-1000-23 | 16.00 | 922.20 | 1002.20 | 25.00 | 15.50 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 16.00-1000-U04 | 16.00 | 908.20 | 1002.20 | 25.40 | 15.50 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 16.00-1500-23 | 16.00 | 1422.20 | 1502.20 | 25.00 | 15.50 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 16.00-1500-U04 | 16.00 | 1408.20 | 1502.20 | 25.40 | 15.50 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 17.00-800-23 | 17.00 | 721.20 | 802.20 | 25.00 | 16.20 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 17.00-800-U04 | 17.00 | 707.20 | 802.20 | 25.40 | 16.20 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 17.00-1000-23 | 17.00 | 921.20 | 1002.20 | 25.00 | 16.20 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 17.00-1000-U04 | 17.00 | 907.20 | 1002.20 | 25.40 | 16.20 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 18.00-800-23 | 18.00 | 719.20 | 802.20 | 25.00 | 17.20 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 18.00-800-U04 | 18.00 | 705.20 | 802.20 | 25.40 | 17.20 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 18.00-1000-23 | 18.00 | 919.20 | 1002.20 | 25.00 | 17.20 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 18.00-1000-U04 | 18.00 | 905.20 | 1002.20 | 25.40 | 17.20 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 18.00-1500-23 | 18.00 | 1419.20 | 1502.20 | 25.00 | 17.20 | 2.200 | 56.0 | TOGT 08... | |
| GD-DHL 18.00-1500-U04 | 18.00 | 1405.20 | 1502.20 | 25.40 | 17.20 | 2.200 | 70.0 | TOGT 08... | |
| GD-DHL 18.50-1500-23 | 18.50 | 1420.00 | 1503.00 | 25.00 | 17.20 | 3.000 | 56.0 | TOGT 09... | |
| GD-DHL 18.50-1500-U04 | 18.50 | 1406.00 | 1503.00 | 25.40 | 17.20 | 3.000 | 70.0 | TOGT 09... | |
| GD-DHL 19.00-800-23 | 19.00 | 719.00 | 803.00 | 25.00 | 18.20 | 3.000 | 56.0 | TOGT 09... | |
| GD-DHL 19.00-800-U04 | 19.00 | 705.00 | 803.00 | 25.40 | 18.20 | 3.000 | 70.0 | TOGT 09... | |
| GD-DHL 19.00-1000-23 | 19.00 | 919.00 | 1003.00 | 25.00 | 18.20 | 3.000 | 56.0 | TOGT 09... | |
| GD-DHL 19.00-1000-U04 | 19.00 | 905.00 | 1003.00 | 25.40 | 18.20 | 3.000 | 70.0 | TOGT 09... | |
| GD-DHL 20.00-800-24 | 20.00 | 713.00 | 803.00 | 32.00 | 19.00 | 3.000 | 60.0 | TOGT 09... | |
| GD-DHL 20.00-800-U05 | 20.00 | 703.00 | 803.00 | 31.75 | 19.00 | 3.000 | 70.0 | TOGT 09... | |
| GD-DHL 20.00-1000-24 | 20.00 | 913.00 | 1003.00 | 32.00 | 19.00 | 3.000 | 60.0 | TOGT 09... | |
| GD-DHL 20.00-1000-U05 | 20.00 | 903.00 | 1003.00 | 31.75 | 19.00 | 3.000 | 70.0 | TOGT 09... | |
| GD-DHL 21.00-1000-24 | 21.00 | 912.20 | 1003.20 | 32.00 | 20.00 | 3.200 | 60.0 | TOGT 10... | |
| GD-DHL 21.00-1000-U05 | 21.00 | 902.20 | 1003.20 | 31.75 | 20.00 | 3.200 | 70.0 | TOGT 10... | |
| GD-DHL 22.00-1000-24 | 22.00 | 910.40 | 1003.40 | 32.00 | 21.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 22-1000-U05 | 22.00 | 900.40 | 1003.40 | 31.75 | 21.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 22.00-1500-24 | 22.00 | 1410.40 | 1503.40 | 32.00 | 21.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 22.00-1500-U05 | 22.00 | 1400.40 | 1503.40 | 31.75 | 21.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 23.00-1000-24 | 23.00 | 909.40 | 1003.40 | 32.00 | 22.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 23.00-1000-U05 | 23.00 | 899.40 | 1003.40 | 31.75 | 22.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 23.00-1500-24 | 23.00 | 1409.40 | 1503.40 | 32.00 | 22.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 23.00-1500-U05 | 23.00 | 1399.40 | 1503.40 | 31.75 | 22.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 24.00-1000-24 | 24.00 | 907.40 | 1003.40 | 32.00 | 23.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 24.00-1000-U05 | 24.00 | 897.40 | 1003.40 | 31.75 | 23.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 24.00-1500-24 | 24.00 | 1407.40 | 1503.40 | 32.00 | 23.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 24.00-1500-U05 | 24.00 | 1397.40 | 1503.40 | 31.75 | 23.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 25.00-1000-24 | 25.00 | 906.40 | 1003.40 | 32.00 | 24.00 | 3.400 | 60.0 | TOGT 11... | |
| GD-DHL 25.00-1000-U05 | 25.00 | 896.40 | 1003.40 | 31.75 | 24.00 | 3.400 | 70.0 | TOGT 11... | |
| GD-DHL 26.00-1000-25 | 26.00 | 894.70 | 1003.70 | 40.00 | 24.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 26.00-1000-U06 | 26.00 | 894.70 | 1003.70 | 38.10 | 25.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 27.00-1000-25 | 27.00 | 893.70 | 1003.70 | 40.00 | 26.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 27.00-1000-U06 | 27.00 | 893.70 | 1003.70 | 38.10 | 26.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 28.00-1000-25 | 28.00 | 891.70 | 1003.70 | 40.00 | 27.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 28.00-1000-U06 | 28.00 | 891.70 | 1003.70 | 38.10 | 27.00 | 3.600 | 70.0 | TOGT 12... | |
| GD-DHL 28.58-939-FU38.1 | 28.58 | 800.00 | 943.60 | 38.10 | 26.92 | 4.572 | 69.0 | TOGT 13... | |
| GD-DHL 28.58-1282-FU38.1 | 28.58 | 1143.00 | 1286.60 | 38.10 | 26.92 | 4.572 | 69.0 | TOGT 13... | |
| GD-DHL 28.58-1511-FU38.1 | 28.58 | 1372.00 | 1515.60 | 38.10 | 26.92 | 4.572 | 69.0 | TOGT 13... |
