GD-DH(14-32)
GD-DH : Gundrills Carrying Triangular Inserts with 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality

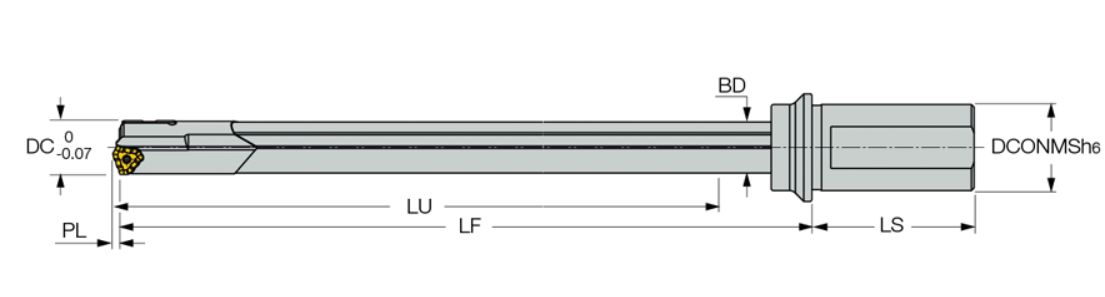

| Designation | DC | LU | DCONMS | BD | LF | PL | LS | MIID | |
|---|---|---|---|---|---|---|---|---|---|
| GD-DH 14.00-15D-M25-07 | 14.00 | 227.00 | 25.00 | 13.50 | 261.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 14.00-20D-M25-07 | 14.00 | 302.00 | 25.00 | 13.50 | 336.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 14.00-25D-M25-07 | 14.00 | 377.00 | 25.00 | 13.50 | 411.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 14.50-15D-M25-07 | 14.50 | 227.00 | 25.00 | 14.00 | 262.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 14.50-20D-M25-07 | 14.50 | 302.00 | 25.00 | 14.00 | 337.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 14.50-25D-M25-07 | 14.50 | 377.00 | 25.00 | 14.00 | 412.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 15.00-15D-M25-07 | 15.00 | 242.00 | 25.00 | 14.50 | 278.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 15.00-20D-M25-07 | 15.00 | 322.00 | 25.00 | 14.50 | 358.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 15.00-25D-M25-07 | 15.00 | 402.00 | 25.00 | 14.50 | 438.00 | 1.95 | 56.0 | TOGT 070304.. | |
| GD-DH 16.00-10D-M25-08-N | 16.00 | 172.20 | 25.00 | 15.50 | 209.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 16.00-15D-M25-08-N | 16.00 | 257.20 | 25.00 | 15.50 | 294.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 16.00-25D-M25-08-N | 16.00 | 427.20 | 25.00 | 15.50 | 464.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 16.50-10D-M25-08-N | 16.50 | 172.20 | 25.00 | 15.50 | 209.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 16.50-15D-M25-08-N | 16.50 | 257.20 | 25.00 | 15.50 | 294.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 16.50-25D-M25-08-N | 16.50 | 427.20 | 25.00 | 15.50 | 464.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 17.00-10D-M25-08-N | 17.00 | 182.20 | 25.00 | 16.20 | 220.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 17.00-15D-M25-08-N | 17.00 | 272.20 | 25.00 | 16.20 | 310.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 17.00-25D-M25-08-N | 17.00 | 452.20 | 25.00 | 16.20 | 490.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 17.50-15D-M25-08-N | 17.50 | 272.20 | 25.00 | 16.20 | 310.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 17.50-25D-M25-08-N | 17.50 | 452.20 | 25.00 | 16.20 | 490.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 18.00-10D-M25-08-N | 18.00 | 193.00 | 25.00 | 16.20 | 232.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 18.00-15D-M25-08-N | 18.00 | 288.00 | 25.00 | 17.20 | 327.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 18.00-25D-M25-08-N | 18.00 | 478.00 | 25.00 | 17.20 | 517.00 | 2.20 | 56.0 | TOGT 080305.. | |
| GD-DH 18.50-15D-M25-09 | 18.50 | 288.00 | 25.00 | 17.20 | 327.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 18.50-25D-M25-09 | 18.50 | 478.00 | 25.00 | 17.20 | 517.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 19.00-10D-M25-09 | 19.00 | 203.00 | 25.00 | 18.20 | 243.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 19.00-15D-M25-09 | 19.00 | 303.00 | 25.00 | 18.20 | 343.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 19.00-25D-M25-09 | 19.00 | 503.00 | 25.00 | 18.20 | 543.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 19.50-15D-M25-09 | 19.50 | 303.00 | 25.00 | 18.20 | 343.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 19.50-25D-M25-09 | 19.50 | 503.00 | 25.00 | 18.20 | 543.00 | 3.00 | 56.0 | TOGT 090305.. | |
| GD-DH 20.00-10D-M32-09 | 20.00 | 213.20 | 32.00 | 19.00 | 255.00 | 3.00 | 60.0 | TOGT 090305.. | |
| GD-DH 20.00-15D-M32-09 | 20.00 | 318.20 | 32.00 | 19.00 | 360.00 | 3.00 | 60.0 | TOGT 090305.. | |
| GD-DH 20.00-25D-M32-09 | 20.00 | 528.20 | 32.00 | 19.00 | 570.00 | 3.00 | 60.0 | TOGT 090305.. | |
| GD-DH 21.00-10D-M32-10 | 21.00 | 223.20 | 32.00 | 20.00 | 266.00 | 3.20 | 60.0 | TOGT 100305.. | |
| GD-DH 21.00-15D-M32-10 | 21.00 | 333.20 | 32.00 | 20.00 | 376.00 | 3.20 | 60.0 | TOGT 100305.. | |
| GD-DH 21.00-25D-M32-10 | 21.00 | 553.20 | 32.00 | 20.00 | 596.00 | 3.20 | 60.0 | TOGT 100305.. | |
| GD-DH 22.00-10D-M32-11 | 22.00 | 233.40 | 32.00 | 21.00 | 278.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 22.00-15D-M32-11 | 22.00 | 348.40 | 32.00 | 21.00 | 393.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 22.00-25D-M32-11 | 22.00 | 578.40 | 32.00 | 21.00 | 623.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 23.00-10D-M32-11 | 23.00 | 243.40 | 32.00 | 22.00 | 289.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 23.00-15D-M32-11 | 23.00 | 363.40 | 32.00 | 22.00 | 409.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 23.00-25D-M32-11 | 23.00 | 603.40 | 32.00 | 22.00 | 649.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 24.00-10D-M32-11 | 24.00 | 253.40 | 32.00 | 23.00 | 301.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 24.00-15D-M32-11 | 24.00 | 378.40 | 32.00 | 23.00 | 426.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 24.00-25D-M32-11 | 24.00 | 628.40 | 32.00 | 23.00 | 676.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 25.00-10D-M32-11 | 25.00 | 263.60 | 32.00 | 24.00 | 312.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 25.00-15D-M32-11 | 25.00 | 393.60 | 32.00 | 24.00 | 442.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 25.00-25D-M32-11 | 25.00 | 653.60 | 32.00 | 24.00 | 702.00 | 3.40 | 60.0 | TOGT 110405.. | |
| GD-DH 26.00-10D-M40-12 | 26.00 | 273.60 | 40.00 | 25.00 | 324.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 26.00-15D-M40-12 | 26.00 | 408.60 | 40.00 | 25.00 | 459.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 26.00-25D-M40-12 | 26.00 | 678.60 | 40.00 | 25.00 | 729.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 27.00-10D-M40-12 | 27.00 | 283.60 | 40.00 | 26.00 | 335.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 27.00-15D-M40-12 | 27.00 | 423.60 | 40.00 | 26.00 | 475.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 27.00-25D-M40-12 | 27.00 | 703.60 | 40.00 | 26.00 | 755.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 28.00-10D-M40-12 | 28.00 | 283.60 | 40.00 | 27.00 | 337.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 28.00-15D-M40-12 | 28.00 | 423.60 | 40.00 | 27.00 | 477.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 28.00-25D-M40-12 | 28.00 | 703.60 | 40.00 | 27.00 | 757.00 | 3.60 | 70.0 | TOGT 120405.. | |
| GD-DH 29.00-10D-M40-13 | 29.00 | 294.57 | 40.00 | 27.00 | 360.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 29.00-20D-M40-13 | 29.00 | 584.57 | 40.00 | 27.00 | 650.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 30.00-10D-M40-13 | 30.00 | 314.57 | 40.00 | 29.00 | 383.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 30.00-20D-M40-13 | 30.00 | 624.57 | 40.00 | 29.00 | 693.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 31.00-10D-M40-13 | 31.00 | 314.57 | 40.00 | 29.00 | 383.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 31.00-20D-M40-13 | 31.00 | 624.57 | 40.00 | 29.00 | 693.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 32.00-10D-M40-13 | 32.00 | 324.57 | 40.00 | 30.00 | 395.00 | 4.57 | 69.0 | TOGT 130408.. | |
| GD-DH 32.00-20D-M40-13 | 32.00 | 644.57 | 40.00 | 30.00 | 715.00 | 4.57 | 69.0 | TOGT 130408.. |
