GD-DHL (12-13)
GD-DH (12-13.5) : Gundrills Carrying Indexable Inserts with 2 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality

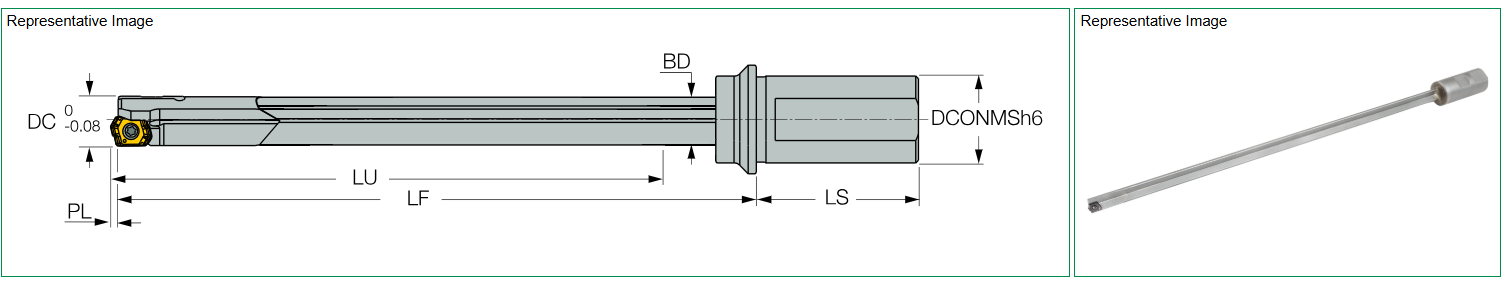

| Designation | DC | LU | OAL | DCONMS | BD | PL | LS | MIID | |
|---|---|---|---|---|---|---|---|---|---|
| GD-DHL 12.00X800-U03 | 12.00 | 713.80 | 801.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 12.00X800-22 | 12.00 | 733.80 | 801.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 12.00X800-34 | 12.00 | 733.80 | 801.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1000-U03 | 12.00 | 913.80 | 1001.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1000-22 | 12.00 | 933.80 | 1001.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1000-34 | 12.00 | 933.80 | 1001.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1650-U03 | 12.00 | 1563.80 | 1651.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1650-22 | 12.00 | 1583.80 | 1651.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 12.00X1650-34 | 12.00 | 1583.80 | 1651.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 060204R.. | |
| GD-DHL 13.00X800-U04 | 13.00 | 711.80 | 801.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 13.00X800-23 | 13.00 | 725.80 | 801.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R.. | |
| GD-DHL 13.00X800-35 | 13.00 | 725.80 | 801.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1000-U04 | 13.00 | 911.80 | 1001.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1000-23 | 13.00 | 925.80 | 1001.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1000-35 | 13.00 | 925.80 | 1001.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1650-U04 | 13.00 | 1561.80 | 1651.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1650-23 | 13.00 | 1575.80 | 1651.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R.. | |
| GD-DHL 13.00X1650-35 | 13.00 | 1575.80 | 1651.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 060204R |
