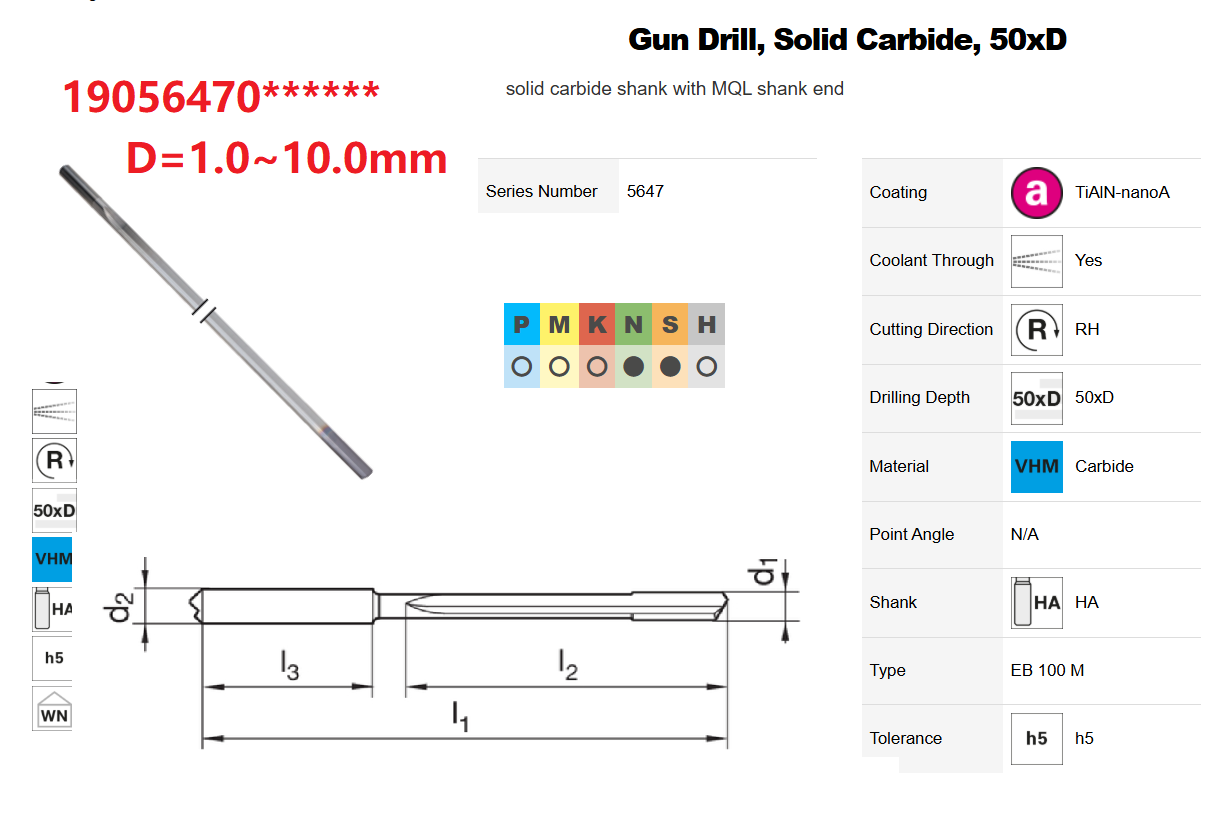

50XD整体硬质合金枪钻
| Cut Ø | Cut Ø | Cut Ø | OAL | Flute Length | Drilling Depth | Drilling Depth | Shank Length | ||||
| EDP # | Code No. | d1 | d1 | d2 | l1 | l2 | tmax | tmax | l3 | Shank Type | Flutes |
| mm | inch | mm | mm | mm | mm | inch | mm | ||||
| 19056470010000 | 1 | 1 | 0.0394 | 3 | 90 | 57 | 55.5 | 2.185 | 28 | HA | 1 |
| 19056470011000 | 1.1 | 1.1 | 0.0433 | 3 | 100 | 64 | 62.35 | 2.455 | HA | 1 | |
| 19056470011900 | 1.19 | 1.191 | 0.0469 | 3 | 100 | 68 | 66.21 | 2.607 | 28 | HA | 1 |
| 19056470012000 | 1.2 | 1.2 | 0.0472 | 3 | 100 | 65 | 63.2 | 2.488 | HA | 1 | |
| 19056470013000 | 1.3 | 1.3 | 0.0512 | 4 | 110 | 75 | 73.05 | 2.876 | HA | 1 | |
| 19056470014000 | 1.4 | 1.4 | 0.0551 | 4 | 115 | 80 | 77.9 | 3.067 | HA | 1 | |
| 19056470015000 | 1.5 | 1.5 | 0.0591 | 4 | 120 | 86 | 83.75 | 3.297 | 28 | HA | 1 |
| 19056470015900 | 1.59 | 1.588 | 0.0625 | 4 | 125 | 91 | 88.62 | 3.489 | 28 | HA | 1 |
| 19056470016000 | 1.6 | 1.6 | 0.063 | 4 | 125 | 89 | 86.6 | 3.409 | HA | 1 | |
| 19056470017000 | 1.7 | 1.7 | 0.0669 | 4 | 125 | 89 | 86.45 | 3.404 | HA | 1 | |
| 19056470018000 | 1.8 | 1.8 | 0.0709 | 4 | 125 | 89 | 86.3 | 3.398 | HA | 1 | |
| 19056470019000 | 1.9 | 1.9 | 0.0748 | 4 | 125 | 89 | 86.15 | 3.392 | HA | 1 | |
| 19056470019800 | 1.98 | 1.984 | 0.0781 | 4 | 145 | 114 | 111.02 | 4.371 | 28 | HA | 1 |
| 19056470020000 | 2 | 2 | 0.0787 | 4 | 145 | 115 | 112 | 4.409 | 28 | HA | 1 |
| 19056470023800 | 2.38 | 2.381 | 0.0937 | 4 | 160 | 130 | 126.43 | 4.978 | 28 | HA | 1 |
| 19056470025000 | 2.5 | 2.5 | 0.0984 | 4 | 185 | 155 | 151.25 | 5.955 | 28 | HA | 1 |
| 19056470027800 | 2.78 | 2.778 | 0.1094 | 4 | 185 | 155 | 150.83 | 5.938 | 28 | HA | 1 |
| 19056470030000 | 3 | 3 | 0.1181 | 6 | 230 | 190 | 185.5 | 7.303 | 36 | HA | 1 |
| 19056470031700 | 3.17 | 3.175 | 0.125 | 6 | 230 | 190 | 185.24 | 7.293 | 36 | HA | 1 |
| 19056470035000 | 3.5 | 3.5 | 0.1378 | 6 | 230 | 190 | 184.75 | 7.274 | 36 | HA | 1 |
| 19056470035700 | 3.57 | 3.572 | 0.1406 | 6 | 260 | 220 | 214.64 | 8.45 | 36 | HA | 1 |
| 19056470039700 | 3.97 | 3.969 | 0.1563 | 6 | 260 | 220 | 214.05 | 8.427 | 36 | HA | 1 |
| 19056470040000 | 4 | 4 | 0.1575 | 6 | 260 | 220 | 214 | 8.425 | 36 | HA | 1 |
| 19056470043700 | 4.37 | 4.366 | 0.1719 | 6 | 290 | 245 | 238.45 | 9.388 | 36 | HA | 1 |
| 19056470045000 | 4.5 | 4.5 | 0.1772 | 6 | 290 | 248 | 241.25 | 9.498 | HA | 1 | |
| 19056470047600 | 4.76 | 4.763 | 0.1875 | 6 | 310 | 268 | 260.86 | 10.27 | 36 | HA | 1 |
| 19056470050000 | 5 | 5 | 0.1969 | 6 | 370 | 330 | 322.5 | 12.697 | 36 | HA | 1 |
| 19056470051600 | 5.16 | 5.159 | 0.2031 | 6 | 370 | 330 | 322.26 | 12.687 | 36 | HA | 1 |
| 19056470055000 | 5.5 | 5.5 | 0.2165 | 6 | 370 | 329 | 320.75 | 12.628 | HA | 1 | |
| 19056470055600 | 5.56 | 5.556 | 0.2187 | 6 | 370 | 330 | 321.67 | 12.664 | 36 | HA | 1 |
| 19056470059500 | 5.95 | 5.953 | 0.2344 | 6 | 370 | 330 | 321.07 | 12.641 | 36 | HA | 1 |
| 19056470060000 | 6 | 6 | 0.2362 | 6 | 370 | 330 | 321 | 12.638 | 36 | HA | 1 |
| 19056470063500 | 6.35 | 6.35 | 0.25 | 8 | 430 | 385 | 375.48 | 14.783 | 36 | HA | 1 |
| 19056470065000 | 6.5 | 6.5 | 0.2559 | 8 | 430 | 385 | 375.25 | 14.774 | 36 | HA | 1 |
| 19056470067500 | 6.75 | 6.747 | 0.2656 | 8 | 430 | 385 | 374.88 | 14.759 | 36 | HA | 1 |
| 19056470070000 | 7 | 7 | 0.2756 | 8 | 430 | 385 | 374.5 | 14.744 | 36 | HA | 1 |
| 19056470071400 | 7.14 | 7.144 | 0.2813 | 8 | 485 | 440 | 429.28 | 16.901 | 36 | HA | 1 |
| 19056470075000 | 7.5 | 7.5 | 0.2953 | 8 | 485 | 440 | 428.75 | 16.88 | HA | 1 | |
| 19056470075400 | 7.54 | 7.541 | 0.2969 | 8 | 485 | 440 | 428.69 | 16.878 | 36 | HA | 1 |
| 19056470079400 | 7.94 | 7.938 | 0.3125 | 8 | 485 | 440 | 428.09 | 16.854 | 36 | HA | 1 |
| 19056470080000 | 8 | 8 | 0.315 | 8 | 485 | 440 | 428 | 16.85 | 36 | HA | 1 |
| 19056470083300 | 8.33 | 8.334 | 0.3281 | 10 | 520 | 470 | 457.5 | 18.012 | HA | 1 | |
| 19056470085000 | 8.5 | 8.5 | 0.3346 | 10 | 530 | 480 | 467.25 | 18.396 | HA | 1 | |
| 19056470087300 | 8.73 | 8.731 | 0.3437 | 10 | 545 | 495 | 481.9 | 18.973 | HA | 1 | |
| 19056470090000 | 9 | 9 | 0.3543 | 10 | 555 | 506 | 492.5 | 19.39 | 40 | HA | 1 |
| 19056470091300 | 9.13 | 9.128 | 0.3594 | 10 | 565 | 515 | 501.31 | 19.737 | HA | 1 | |
| 19056470095000 | 9.5 | 9.5 | 0.374 | 10 | 585 | 535 | 520.75 | 20.502 | HA | 1 | |
| 19056470095300 | 9.53 | 9.525 | 0.375 | 10 | 590 | 540 | 525.71 | 20.697 | HA | 1 | |
| 19056470099200 | 9.92 | 9.922 | 0.3906 | 10 | 610 | 560 | 545.12 | 21.461 | HA | 1 | |
| 19056470100000 | 10 | 10 | 0.3937 | 10 | 615 | 562 | 547 | 21.535 | 40 | HA | 1 |
