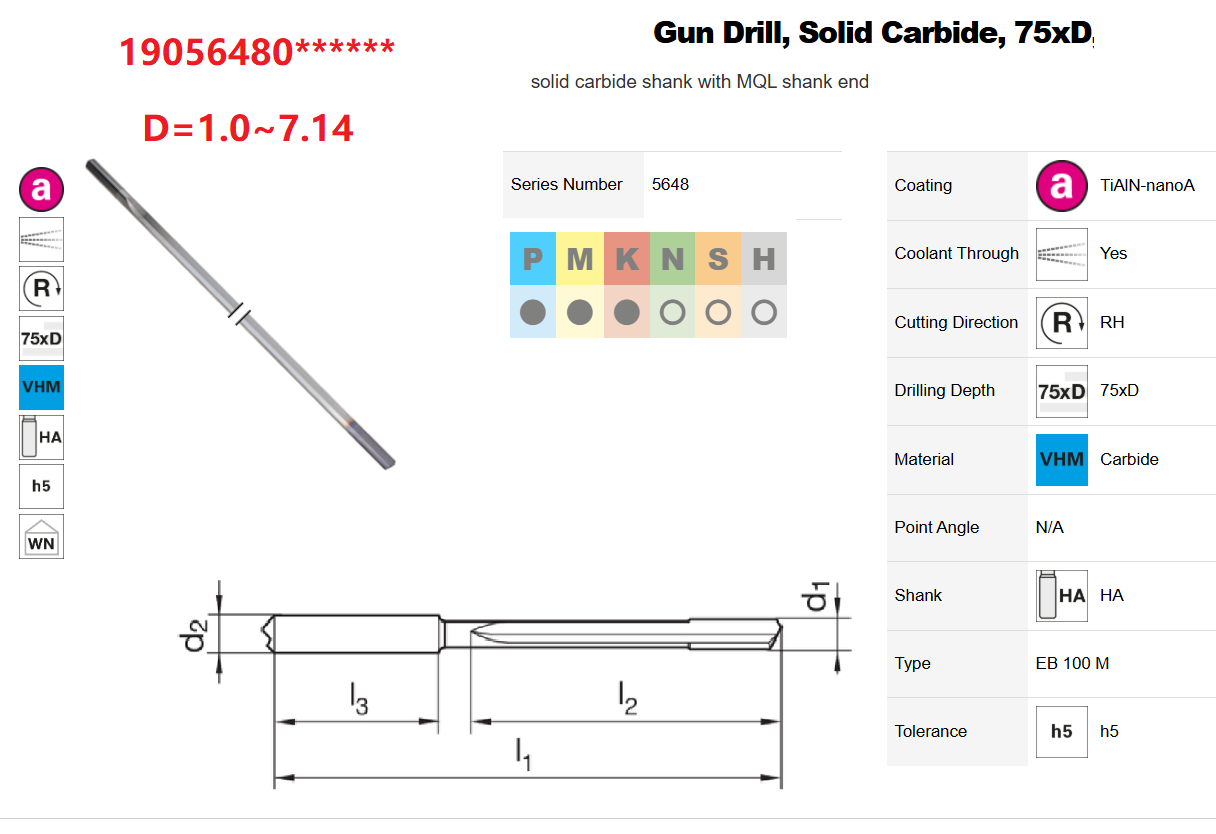

75xD整体钨钢枪钻
| Cut Ø | Cut Ø | Cut Ø | OAL | Flute Length | Drilling Depth | Drilling Depth | Shank Length | ||||
| EDP # | Code No. | d1 | d1 | d2 | l1 | l2 | tmax | tmax | l3 | Shank Type | Flutes |
| mm | inch | mm | mm | mm | mm | inch | mm | ||||
| 19056480010000 | 1 | 1 | 0.0394 | 3 | 115 | 82 | 80.5 | 3.169 | 28 | HA | 1 |
| 19056480011000 | 1.1 | 1.1 | 0.0433 | 3 | 130 | 92 | 90.35 | 3.557 | HA | 1 | |
| 19056480011900 | 1.19 | 1.191 | 0.0469 | 3 | 130 | 98 | 96.21 | 3.788 | 28 | HA | 1 |
| 19056480012000 | 1.2 | 1.2 | 0.0472 | 3 | 130 | 94 | 92.2 | 3.63 | HA | 1 | |
| 19056480013000 | 1.3 | 1.3 | 0.0512 | 4 | 145 | 108 | 106.05 | 4.175 | HA | 1 | |
| 19056480014000 | 1.4 | 1.4 | 0.0551 | 4 | 155 | 117 | 114.9 | 4.524 | HA | 1 | |
| 19056480015000 | 1.5 | 1.5 | 0.0591 | 4 | 155 | 124 | 121.75 | 4.793 | 28 | HA | 1 |
| 19056480015900 | 1.59 | 1.588 | 0.0625 | 4 | 165 | 131 | 128.62 | 5.064 | 28 | HA | 1 |
| 19056480016000 | 1.6 | 1.6 | 0.063 | 4 | 165 | 128 | 125.6 | 4.945 | HA | 1 | |
| 19056480017000 | 1.7 | 1.7 | 0.0669 | 4 | 165 | 128 | 125.45 | 4.939 | HA | 1 | |
| 19056480018000 | 1.8 | 1.8 | 0.0709 | 4 | 165 | 129 | 126.3 | 4.972 | HA | 1 | |
| 19056480019000 | 1.9 | 1.9 | 0.0748 | 4 | 165 | 129 | 126.15 | 4.967 | HA | 1 | |
| 19056480019800 | 1.98 | 1.984 | 0.0781 | 4 | 195 | 163 | 160.02 | 6.3 | 28 | HA | 1 |
| 19056480020000 | 2 | 2 | 0.0787 | 4 | 195 | 165 | 162 | 6.378 | 28 | HA | 1 |
| 19056480023800 | 2.38 | 2.381 | 0.0937 | 4 | 220 | 190 | 186.43 | 7.34 | 28 | HA | 1 |
| 19056480025000 | 2.5 | 2.5 | 0.0984 | 4 | 255 | 220 | 216.25 | 8.514 | 28 | HA | 1 |
| 19056480027800 | 2.78 | 2.778 | 0.1094 | 4 | 255 | 220 | 215.83 | 8.497 | 28 | HA | 1 |
| 19056480030000 | 3 | 3 | 0.1181 | 6 | 290 | 247 | 242.5 | 9.547 | 36 | HA | 1 |
| 19056480031700 | 3.17 | 3.175 | 0.125 | 6 | 320 | 280 | 275.24 | 10.836 | 36 | HA | 1 |
| 19056480035000 | 3.5 | 3.5 | 0.1378 | 6 | 320 | 280 | 274.75 | 10.817 | 36 | HA | 1 |
| 19056480035700 | 3.57 | 3.572 | 0.1406 | 6 | 360 | 320 | 314.64 | 12.387 | 36 | HA | 1 |
| 19056480039700 | 3.97 | 3.969 | 0.1563 | 6 | 360 | 320 | 314.05 | 12.364 | 36 | HA | 1 |
| 19056480040000 | 4 | 4 | 0.1575 | 6 | 360 | 320 | 314 | 12.362 | 36 | HA | 1 |
| 19056480043700 | 4.37 | 4.366 | 0.1719 | 6 | 395 | 355 | 348.45 | 13.719 | 36 | HA | 1 |
| 19056480045000 | 4.5 | 4.5 | 0.1772 | 6 | 395 | 352 | 345.25 | 13.593 | HA | 1 | |
| 19056480047600 | 4.76 | 4.763 | 0.1875 | 6 | 430 | 387 | 379.86 | 14.955 | 36 | HA | 1 |
| 19056480050000 | 5 | 5 | 0.1969 | 6 | 450 | 406 | 398.5 | 15.689 | 36 | HA | 1 |
| 19056480051600 | 5.16 | 5.159 | 0.2031 | 6 | 465 | 419 | 411.26 | 16.191 | 36 | HA | 1 |
| 19056480055000 | 5.5 | 5.5 | 0.2165 | 6 | 495 | 450 | 441.75 | 17.392 | HA | 1 | |
| 19056480055600 | 5.56 | 5.556 | 0.2187 | 6 | 525 | 485 | 476.67 | 18.767 | 36 | HA | 1 |
| 19056480059500 | 5.95 | 5.953 | 0.2344 | 6 | 525 | 485 | 476.07 | 18.743 | 36 | HA | 1 |
| 19056480060000 | 6 | 6 | 0.2362 | 6 | 525 | 485 | 476 | 18.74 | 36 | HA | 1 |
| 19056480063500 | 6.35 | 6.35 | 0.25 | 8 | 560 | 516 | 506.48 | 19.94 | 36 | HA | 1 |
| 19056480065000 | 6.5 | 6.5 | 0.2559 | 8 | 575 | 528 | 518.25 | 20.404 | 36 | HA | 1 |
| 19056480067500 | 6.75 | 6.747 | 0.2656 | 8 | 595 | 548 | 537.88 | 21.176 | 36 | HA | 1 |
| 19056480070000 | 7 | 7 | 0.2756 | 8 | 615 | 568 | 557.5 | 21.949 | 36 | HA | 1 |
| 19056480071400 | 7.14 | 7.144 | 0.2813 | 8 | 625 | 580 | 569.28 | 22.413 | 36 | HA | 1 |
